The electrostatic filter, which cost over 20000 yuan to install, showed a significant decrease in suction after three months of use. Upon opening, the plates were covered in oil and couldn't be cleaned thoroughly. This is the experience of a Hunan restaurant owner in Hangzhou. The problem is not with the electrostatic filter itself, but with his four stir fry stoves using a standard model labeled as "suitable for medium-sized restaurants". The first pitfall when choosing an electrostatic filter is' using the wrong strength '.

The common practice in the international industry is to select based on cooking intensity grading. The selection guide of Extechnology in the UK divides commercial kitchens into three levels: light, medium, and heavy: light catering (coffee and light meals) has low oil and smoke production, and standard units are sufficient; Medium sized restaurants (hotel kitchens, school cafeterias) must use multi-stage electrostatic filtration with activated carbon, and the requirements for air volume matching for medium strength are nearly twice as high as those for mild strength; Heavy oil fume scenarios (such as stir frying Hunan cuisine and charcoal grilling) require two-stage series electrostatic and UV photolysis or ozone treatment, which cannot be carried by single-stage equipment. The engineering specification of Do ଽଽଁ klimlendirme in Türkiye also requires that the active carbon filter must be configured after the static section for the medium concentration soot scenario, with the contact time not less than 0.1 seconds, and the two-level static electricity must be used for the high concentration scenario and extended to more than 0.2 seconds. One sentence: If the air volume is matched correctly, but the intensity grading is selected incorrectly, accidents can still occur.

The second pitfall is' ignoring system compliance '. Electrostatic filters are not isolated devices. The UL 867 standard in the United States has mandatory requirements for electrical safety, ozone emissions, and structural design of electrostatic air purifiers. When approving commercial kitchen exhaust equipment, the New York City Department of Buildings explicitly requires compliance with both UL 710 (smoke hood standard) and UL 867. DW172 in the UK specifies the wind speed and capture efficiency of smoke exhaust ducts from the system design end, and the selection of electrostatic filters must match the entire smoke exhaust system, otherwise even the best designed equipment cannot pass the acceptance.

Global experience is verifying one thing: choosing the right strength is more important than buying expensive machines. Manchester City Football Club in the UK has selected five ESP 3000E electrostatic units to cover multiple kitchen exhaust systems in their home kitchen. The core demand is to reduce the risk of fire caused by oil accumulation and minimize the frequency of pipeline cleaning. The Nusr ET steakhouse in Las Vegas has three kitchens and five cooking stations, including a solid fuel cooking station, which generates extremely high heat and oil fume pollutants. The selected electrostatic filtration system is specifically optimized for the solid fuel scenario in terms of plate spacing and cleaning cycle. The common logic of these cases is to first determine the cooking intensity, then select the equipment level, and finally match the air volume and installation position.

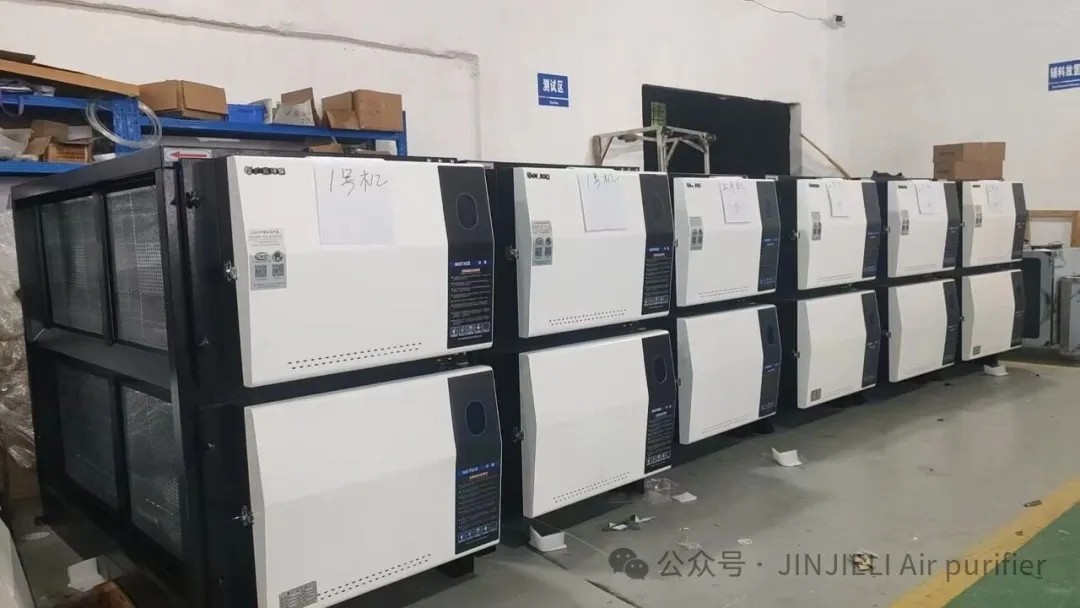

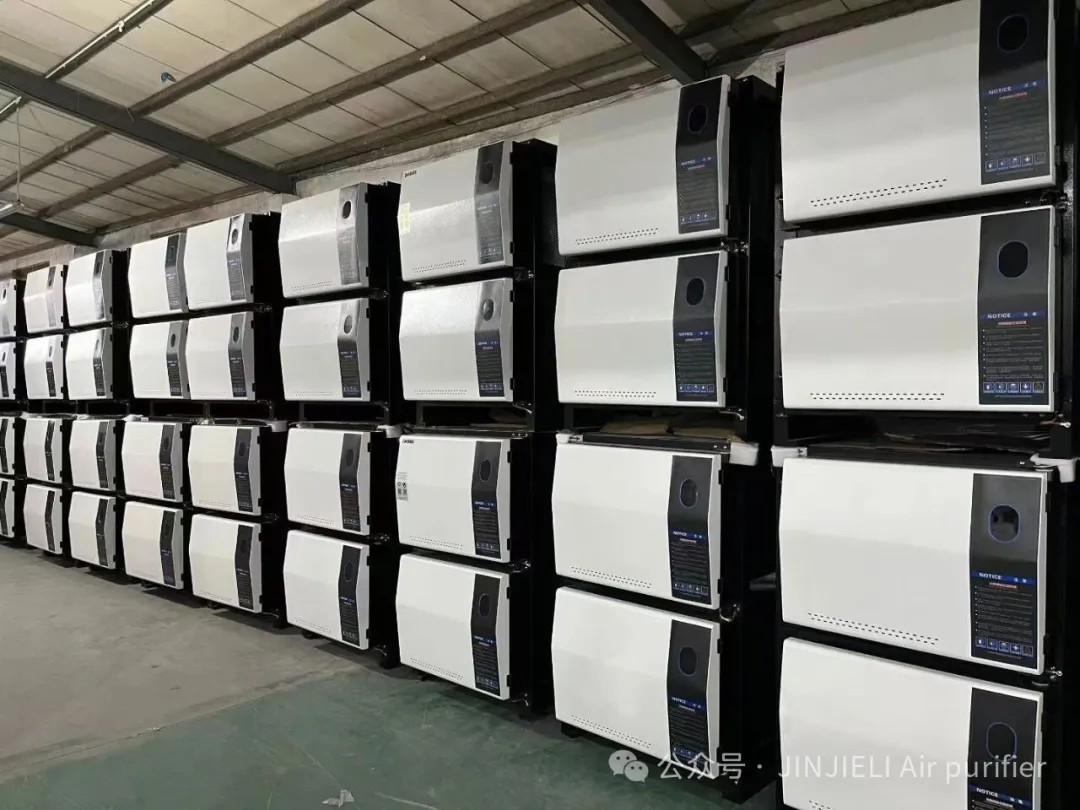

Jinjieli electrostatic filters cover all scenarios from light catering to heavy oil smoke, and each device must pass electrical safety testing and purification efficiency testing before leaving the factory. More importantly, Jin Jieli will calculate the actual working conditions based on the number of stoves, type of cuisine, and cooking time, and provide a written selection plan, rather than letting the boss "choose based on intuition" based on the parameter table.

Catering owners, your kitchen should be equipped with an electrostatic filter of the appropriate strength level. Choosing the right step is much more cost-effective than rectifying problems.
